Camlock Connectors





Camlock Connectors

  • In an effluent irrigation system, aluminium camlock connectors are commonly used to connect
o    Effluent pumps in sumps and on pontoons to pipelines
o    Tractor PTO pumps to suction and discharge hoses
o    Effluent pontoons to surface and buried pipelines
o    Polyethylene mainline pipe sections above ground
o    Hydrant takeoffs to draghoses
o    Polyethylene and layflat draghose section
  • Camlock Connectors are commonly used as a quick and convenient method of connecting together two flexible hoses or a flexible hose to a rigid pipe and just as quickly and easily disconnecting them.  They are manufactured in stainless steel, bronze, polypropylene and most commonly aluminium.

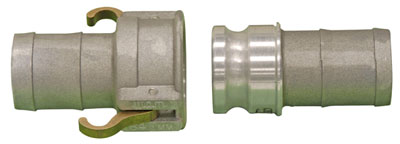

  • Male camlocks are called adaptors and female camlocks are called couplers.  The female coupler is fitted over the male adaptor and the connection is secured by the two locking levers on the female coupler.

  • On the opposite end of the camlock adaptor and coupler is a choice of a hose tail or male or female BSP Thread.  Other options include double hose tails, double reducing hose tails, male threaded hose tails, dust plugs and dust caps.

Standard Camlocks


A
Adaptor to
Female Thread
B
Coupler to
Male Thread
C
Coupler to
Hose Tail
 camlockA.jpg  camlockB.jpg
D
Coupler to
Female Thread
E
Adaptor to
Hose Tail
F
Adaptor to
Male Thread
 camlockD.jpg camlockE.jpg  camlockF.jpg

Size A
B C D E F
19 CAM019A CAM019B
CAM019C CAM019D
CAM019E CAM019F
25
CAM025A CAM025B CAM025C CAM025D CAM025E CAM025F
32 CAM032A CAM032B CAM032C CAM032D CAM032E CAM032F
38
CAM038A CAM038B CAM038C CAM038D CAM038E CAM038F
51 CAM051A CAM051B CAM051C CAM051D CAM051E CAM051F
64
CAM064A CAM064B CAM064C CAM064D CAM064E CAM064F
76
CAM076A CAM076B CAM076C CAM076D CAM076E CAM076F
102
CAM102A CAM102B CAM102C CAM102D CAM102E CAM102F
152
CAM152A CAM152B CAM152C CAM152D CAM152E CAM152F

Standard Camlocks


DC
Dust Cap
DP
Dust Plug
TTS
Hose Tail to
Male Thread
DHT
Double
Hose Tail
TTS.jpg DHT.jpg

Size DC DP TTS DHT
19 CAM019DC CAM019DP CAM019TTS CAM019DHT
25
CAM025DC CAM025DP CAM025TTS CAM025DHT
32 CAM032DC CAM032DP CAM032TTS CAM032DHT
38
CAM038DC CAM038DP CAM038TTS CAM038DHT
51
CAM051DC CAM051DP CAM051TTS CAM051DHT
64
CAM064DC CAM064DP CAM064TTS CAM064DHT
76 CAM076DC CAM076DP CAM076TTS CAM076DHT
102 CAM102DC CAM102DP CAM102TTS CAM102DHT
152 CAM152DC CAM152DP CAM152TTS CAM152DHT


S
Seal
A
Arm
P
Pin
ring.jpg arm.jpg camP.jpg

Size S A P
19 CAMSEAL019 CAMARM019 CAMPIN019
25
CAMSEAL025 CAMARM025 CAMPIN025
32 CAMSEAL032 CAMARM03264 CAMPIN03264
38
CAMSEAL038 CAMARM03264 CAMPIN03264
51
CAMSEAL051 CAMARM03264 CAMPIN03264
64
CAMSEAL064 CAMARM03264 CAMPIN03264
76 CAMSEAL076 CAMARM076100 CAMPIN076100
102 CAMSEAL102 CAMARM076100 CAMPIN076100
152 CAMSEAL152 CAMARM152 CAMPIN152


Effluent Camlocks

AGC
Coupler to Hose Tail
Code Camlock
Size
Pipe & Hose Size
CAM05163AGC 51 63 MDPE
CAM06463AGC 64 63 MDPE
CAM06475AGC 64 75 MDPE
CAM07663AGC 76 63 MDPE
CAM07675AGC 76 75 MDPE
CAM07690AGC 76 90 MDPE
CAM100110AGC 100 110 MDPE

AGE
Adaptor to Hose Tail
Code Camlock Size Pipe & Hose Size
CAM05163AGE 51 63 MDPE
CAM06463AGE 64 63 MDPE
CAM06475AGE 64 75 MDPE
CAM07663AGE 76 63 MDPE
CAM07675AGE 76 75 MDPE
CAM07690AGE 76 90 MDPE
CAM100110AGE 100 110 MDPE

DHT
Double Hose Tail
Code Pipe & Hose Size
CAM06363AGDHT 63 MDPE
CAM07563AGDHT 63 MDPE
CAM07575AGDHT 75 MDPE
CAM09063AGDHT 63 MDPE
CAM09075AGDHT 75 MDPE
CAM09090AGDHT 90 MDPE
