In Ground Hydrants

*Design Registration #29087, #28115, #28114 and #408230

Irrigator Draghose

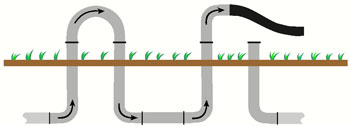

Effluent flows through this hydrant avoiding any debris build up.

Debris always accumulates here and will travel and block the next hydrant in use.


PVC Rubber Ring Joint 65 & 80	MDPE Hose Tail 75 & 90	BSPT Thread 2 1/2" & 3"

Available in the following configurations	Available with the following pipe connections
1 way - used on the end of a pipeline. 2 way - used to connect into a pipeline. 3 way - used at a tee in a pipeline. 4 way - used at a cross in a pipeline.	65 mm dia. PVC RRJ 80 mm dia. PVC RRJ 75 mm dia. MDPE Hose Tail 90 mm dia. MDPE Hose Tail 2 1/2" dia. BSPT male 3" dia. BSPT male

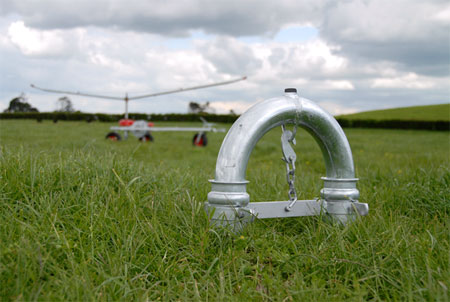

The simplest and most convenient method of supplying effluent from a buried pipeline to a draghose and irrigator.

Easily accessible above ground in a clean environment. Eliminates the need to make connections below ground by feel in a puddle of effluent.

A superior sealing system for the “U” Bend eliminates leaks which are a problem with other hydrants.

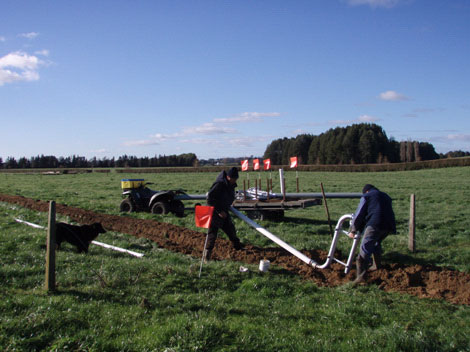

PVC pipe 65 mm and 80 mm dia. installations are quick and easy with our rubber ring joint hydrants. This is the only hydrant on the market with this great jointing system. Simply apply lubricant and push the pipe into the hydrant and install a thrust block to complete the installation.

MDPE pipe 75 mm and 90 mm dia. installations are quick and easy with our hose tail hydrants. Use a propane gas torch to heat the pipe, push the MDPE pipe over the hose tail and fit two hose clamps or bandit straps to each hose tail to complete the connection.

Threaded 2½” and 3” BSPT male threads provide for all other sizes and types of pipe connections.

A Vacuum Release Valve prevents siphoning and pipe collapsing when the irrigator is operating below a hydrant. Used in conjunction with Hydrant 180º Bend c/w 20 BSP Socket (Code 14006).

A Drain Valve enables a section of pipeline to be drained to allow the removal of the “U” bend to fit the Hydrant Take Off. Used in conjunction with Hydrant 180º Bend c/w 20 BSP Socket (Code 14006).

Debris Caps prevent debris and rodents entering the pipelines. Use one Debris Cap for 1 and 3 Way Hydrants and two Debris Caps for 4 Way Hydrants.

Code	Description
14202	Hydrant 1 Way 65 PVC Rubber Ring Joint
14203	Hydrant 1 Way 80 PVC Rubber Ring Joint
14206	Hydrant 1 Way 75 MDPE Hose Tail
14207	Hydrant 1 Way 90 MDPE Hose Tail
14210	Hydrant 1 Way 2 1/2" BSPT Male Thread
14211	Hydrant 1 Way 3" BSPT Male Thread
14222	Hydrant 2 Way 65 PVC Rubber Ring Joint
14223	Hydrant 2 Way 80 PVC Rubber Ring Joint
14226	Hydrant 2 Way 75 MDPE Hose Tail
14227	Hydrant 2 Way 90 MDPE Hose Tail
14230	Hydrant 2 Way 2 1/2" BSPT Male Thread
14231	Hydrant 2 Way 3" BSPT Male Thread
14242	Hydrant 3 Way 65 PVC Rubber Ring Joint
14243	Hydrant 3 Way 80 PVC Rubber Ring Joint
14246	Hydrant 3 Way 75 MDPE Hose Tail
14247	Hydrant 3 Way 90 MDPE Hose Tail
14250	Hydrant 3 Way 2 1/2" Male BSPT Thread
14251	Hydrant 3 Way 3" BSPT Male Thread
14262	Hydrant 4 Way 65 PVC Rubber Ring Joint
14263	Hydrant 4 Way 80 PVC Rubber Ring Joint
14266	Hydrant 4 Way 75 MDPE Hose Tail
14267	Hydrant 4 Way 90 MDPE Hose Tail
14270	Hydrant 4 Way 2 1/2" BSPT Male Thread
14271	Hydrant 4 Way 3" BSPT Male Thread
14020	Hydrant Take Off 110º x 2 1/2" BSPT Male Thread
14021	Hydrant Take Off 110º c/w 51 Female Camlock
14024	Hydrant Take Off 90º x 2 1/2" BSPT Male Thread
14026	Hydrant Take Off 180º x 2 1/2" BSPT Male Thread
NHDC76.25	Hose Clamps for Hydrant 75 MDPE Hose Tails
NHDC88.25	Hose Clamps for Hydrant 90 MDPE Hose Tails
14006	Hydrant 180º Bend c/w 20 BSP Socket (optional)
14008	Hydrant Debris Cap (optional)
50202	Hydrant Vacuum Release Valve (optional)
50204	Hydrant Drain Valve (optional)
14090	Hydrant Seal Lubricant 25 ml

Ecostream In Ground Hydrant Installation
