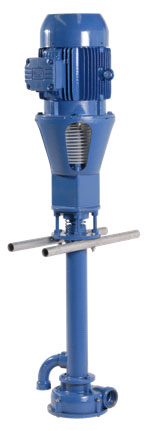

Electric Effluent Pumps





  • The open impeller design provides great solids handling capability without clogging.

  • Both bearings and seals are located above the liquid hence the pump can be run dry without causing damage.

  • As the pump casing is submerged in liquid when the pump starts, there are no priming problems.

  • The pump shaft extends approximately 700 mm past the lower bearing enabling the shaft and impeller to deflect to allow a large item of debris to be pumped without damage or clogging.

  • The pump is able to pump sand and gravel without damage to the pump shaft, bearings and seals.  Sand and gravel however will accelerate impeller and pump casing wear.


Effluent Pump Performance Data


Pump
Model		 Motor Size
(hp)                         (kW)		 Impeller Dia.
(mm)
RH3 3.0 2.2 200
RH4 5.5 4.0 215
RH6 10.0 7.5 220
RH5 5.5 4.0 150
RH5A 7.5 5.5 152
RH6A 10.0 7.5 156
RH7*1 15.0
11.0 187
RH7*2 15.0 11.0 178
RH8 20.0 15.0 200
RH9 25.0 18.5 210
RH10*1 30.0 22.0 215
RH10*2 30.0 22.0 220

Flow litres/minute
Pump Model 0 100 200 300 400 500 600 700
Effluent Pump 1400 rpm
Head (m)
RH3 14 14 13 12 10
RH4 16 15 15 14 14 13 12 10
RH6 29 20 19 18 17 16 15 14
Effluent Pump 2800 rpm
Head (m)
RH5 29 28 27 25 23
RH5A 31 31 31 30 30 29 28 27
RH6A 33 33 32 32 31 31 30 29
RH7*1 52 52 51 51 50 49 48 47
RH7*2 48 48 48 47 47 47 46 46
RH8 63 63 63 63 62 62 61 61
RH9 69 69 69 69 68 68 68 67
RH10*1 75 75 75 75 75 75 74 74
RH10*2 80 80 80 79 79 78 77 76


Code Description
Effluent Pumps  -  1400 rpm
RH3P&M Yardmaster RH3 Pump c/w 3 hp motor
RH4P&M Yardmaster RH4 Pump c/w 5 hp motor
RH6P&M
Yardmaster RH6 Pump c/w 10 hp motor
Effluent Pumps  -  2800 rpm
RH5P&M Yardmaster RH5 Pump c/w 5 hp motor
RH5AP&M Yardmaster RH5A Pump c/w 7.5 hp motor
RH6AP&M Yardmaster RH6A Pump c/w 10 hp motor
RH7P&M Yardmaster RH7 Pump c/w 15 hp motor
RH8P&M Yardmaster RH8 Pump c/w 20 hp motor
RH9P&M Yardmaster RH9 Pump c/w 25 hp motor
RH10P&M Yardmaster RH10 Pump c/w 30 hp motor
c/w 2 ½” outlet
Effluent Cutter Pumps  -  2800 rpm
RHCB5P&M Yardmaster RHCB5 Pump & Cutter c/w 7.5 hp motor
RHCB5AP&M Yardmaster RHCB5A Pump & Cutter c/w 10 hp motor
RHCB6AP&M Yardmaster RHCB6A Pump & Cutter c/w 15 hp motor
RHCB7P&M Yardmaster RHCB7 Pump & Cutter c/w 20 hp motor
RHCB8P&M Yardmaster RHCB8 Pump & Cutter c/w 25 hp motor
All pumps have 2” BSP female outlet and three phase motors unless otherwise stated.
Effluent Pump Suction Extensions
PYM18A250 Suction Extension Tube Set 230 dia. x 250 mm
RH5, RH5A & RH6A
PYM18B250 Suction Extension Tube Set 285 dia. x 250 mm
RH3, RH4, RH6, RH7 & RH8
PYM18A500
Suction Extension Tube Set 230 dia. x 500 mm
RH5, RH5A & RH6A
PYM18B500 Suction Extension Tube Set 285 dia. x 500 mm
RH3, RH4, RH6, RH7 & RH8

For Pump Adaptors, refer to Adaptors Section
