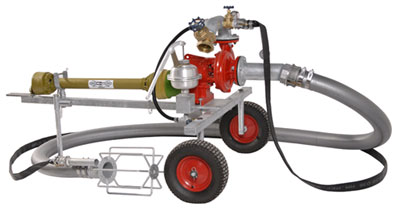

PTO Pumps






  • Ideal for operating an Ecostream Stationary Irrigator, Travelling Irrigator or a Raingun on a Skid.

  • The PTO Pump can also be used for pumping water from a river or dam for summer irrigation utilising the effluent pipelines and irrigator.

  • A PTO Pump and a Raingun on a Skid are often used by Farmers with multiple farms or shared by neighbours.  Some Farmers even hire out their PTO Pump and Raingun.

  • A PTO Pump and Raingun and Skid will generally provide the lowest capital cost effluent system.

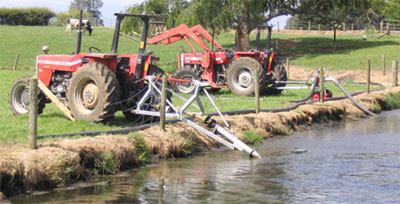

  • Also used for trough cleaning.

  • Wheeled Trailer and PTO Shaft.

  • Suction Screen and Hose 100 mm dia. x 5.0 m c/w camlocks.  Suction hose length cut to suit up to 10 metres.

  • stamp2.jpgHand Primer, Reservoir and Vacuum Gauge for monitoring suction screen blockages.

  • Discharge pipework left hand or right hand, Gate Valve and Pressure Gauge.


PTO Pump Performance Data
Model 285
Flow
(l/min)
Head
(m)
Pressure
(psi)
Minimum Engine
(hp)
200
74
105
30
600
72
102
40
1000
70
99
45
1400
66
94
50
1800 60 85 60

PTO 540 rpm

PTO Pump Performance Data
Model 380
Flow
(l/min)
Head
(m)
Pressure
(psi)
Minimum Engine
(hp)
200 119 167 60
600 117 166 65
1000
115 163 75
1400
112 159 85
1800 106 150 95

PTO 540 rpm

Code Description
18000 Ecostream PTO Trailer Pump 285
18200 Ecostream PTO Trailer Pump 380
18021 Agitator Hose 40 mm dia. x 6.5 metres
c/w camlocks (optional)

For PTO Pump Adaptors, refer to Adaptors Section

Optional Extras

The Agitator Valve and Hose enables debris to be dislodged from the suction screen by pumping effluent back into the screen without having to remove the suction screen from the pond for cleaning.


Ecostream PTO Pump & Tractor Pond Stirrer
