Pump Controllers - Electric







  • Ecostream Electric Effluent Pump Controllers are purpose built to control effluent pumps in sumps and storage ponds.

  • Installed in the farm dairy or in a weatherproof enclosure adjacent to the effluent sump or storage pond.

  • Pre-wired, pre-assembled, compact pump control systems.
  • Professionally manufactured and presented.

  • Electric Effluent Stirrer Controllers available.

  • Pump and stirrer controllers are manufactured to specification

  • Ecostream Pump Controllers have the following features
o
o
o
o

o

o
o
External lockable isolator
Motor overload protection with external reset button for convenience
Manual and automatic operation
Hour meter to monitor effluent application rates and also facilitate pump maintenance
Safe low voltage (24VAC) power to external controls such as Ecostream Sump Pump Switches
Wiring diagrams for future maintenance and fault diagnosis
Direct on line, soft start or variable speed drive options



Pump Controllers for Sumps


This controller in conjunction with a Sump Pump Switch (or similar device) will automatically start an effluent pump when the effluent level in a sump rises to a predetermined high level and then stops the effluent pump when the effluent level falls to a predetermined low level.

Code Description
17000 Sump Pump Controller 2.2-5.5 kW
17001 Sump Pump Controller 7.5 kW
17030 Sump Pump Controller c/w Soft Starter 7.5 kW
17031 Sump Pump Controller c/w Soft Starter 11 kW
17032 Sump Pump Controller c/w Soft Starter 15 kW
17033 Sump Pump Controller c/w Soft Starter 18.5 kW


Pump Controllers for Conical Sumps


This controller is generally used in conical sumps where the sump pump switch is positioned near the higher part of the conical base but the pump suction is located near the deepest part of the conical base.

The controller is fitted with an additional timer to allow the pump to continue to operate for a predetermined time period (adjustable) after the sump pump switch has reached the stop position to pump out the contents of the conical base before switching off.  This will prevent sludge buildup and crusting from occurring.

Code Description
17004 Conical Sump Pump Controller 2.2-5.5 kW
17005 Conical Sump Pump Controller 7.5 kW
17040 Conical Sump Pump Controller c/w Soft Starter 7.5 kW
17041 Conical Sump Pump Controller c/w Soft Starter 11 kW
17042 Conical Sump Pump Controller c/w Soft Starter 15 kW
17043 Conical Sump Pump Controller c/w Soft Starter 18.5 kW

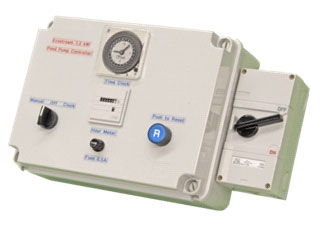

Pump Controllers for Storage Ponds


This Controller will automatically start and stop the effluent pump at predetermined times using a time clock.  The elapsed time is generally the time taken by the travelling irrigator to complete a run.

Code Description
17008 Pond Pump Controller 2.2-5.5 kW
17009 Pond Pump Controller 7.5 kW
17050 Pond Pump Controller c/w Soft Starter 7.5 kW
17051 Pond Pump Controller c/w Soft Starter 11 kW
17052 Pond Pump Controller c/w Soft Starter 15 kW
17053 Pond Pump Controller c/w Soft Starter 18.5 kW


Optional Extras


Code Description
17080 Weatherproof enclosure for outdoor installation for pump controllers without Soft Starters
17085 Weatherproof enclosure for outdoor installation for pump controllers with Soft Starters
  Electric Effluent Stirrer Controllers – manufactured to order
  Variable Speed Drives – supplied to order
