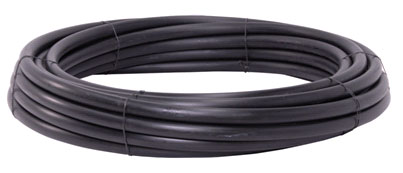

Polyethylene Pipe Mainlines






  • Suitable for buried or surface pipelines due to UV resistance.

  • Commonly used sizes for effluent mainlines are 75 mm and 90 mm dia.

  • Compression joiners are used for connecting buried MDPE pipelines and camlock couplings are used for connecting surface MDPE pipelines.
  • Manufactured in 25, 50 & 100 metre coils.

  • Manufactured in 8 bar pressure rating for effluent systems.  Other pressure ratings are available.

  • Conveniently uncoiled with the use of an Ecostream Pipe Jenny.

Working Pressure Conversion Table - Polyethylene
PN Bar kPa     Head (m)
 psi
3.2 3.2
 320
 32 46
4.0 4.0 400
 40 58
6.3 6.3 630 63 91
8.0 8.0 800 80 116
10.0 10.0 1000 100 145
12.5 12.5 1250 125 181
16.0 16.0 1600
 160 232

Code
Description
2200.63PN6.3.100 MDPE Pipe 63 mm dia. 6.3 bar x 100 m
2200.75PN8.100 MDPE Pipe 75 mm dia. 8 bar x 100 m
2200.90PN8.100 MDPE Pipe 90 mm dia. 8 bar x 100 m
2200.110PN8.100 MDPE Pipe 110 mm dia. 8 bar x 100 m
